Innovative Engineering for Aerospace Machining Challenges #
The aerospace sector demands tools that can handle the most advanced materials—titanium alloys, Waspaloy®, and nickel-based superalloys like Inconel 718. These materials are essential for modern aircraft and spacecraft, but their machining presents significant challenges. The AP Series from JLC is engineered to meet these demands, combining advanced design, premium materials, and cutting-edge coatings to deliver exceptional performance and reliability.

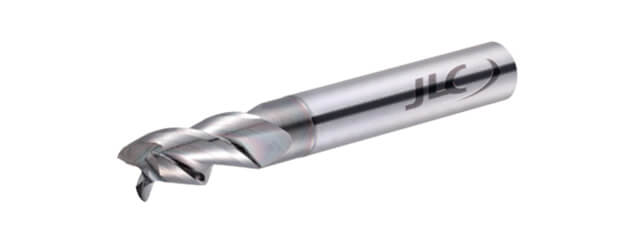

APET Bullet-shaped Generic End Mill For Steel

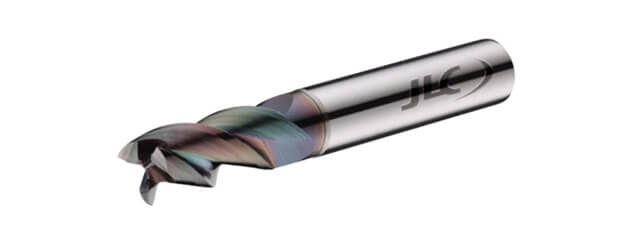

APAL Bullet-shaped Design End Mill for Aluminum

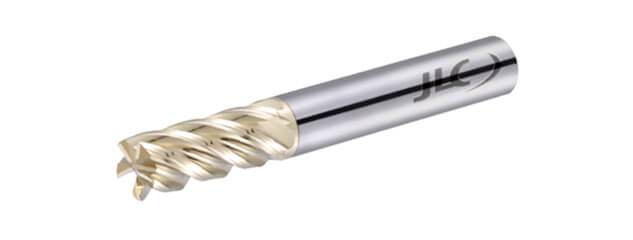

AP5-End Mill For Nickel Alloy 718-5 Flutes

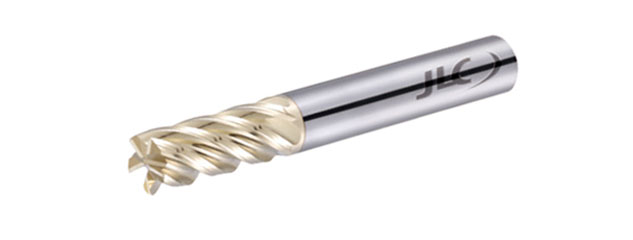

AP5-Corner Radius End Mill For Nickel Alloy 718 - 5 Flutes

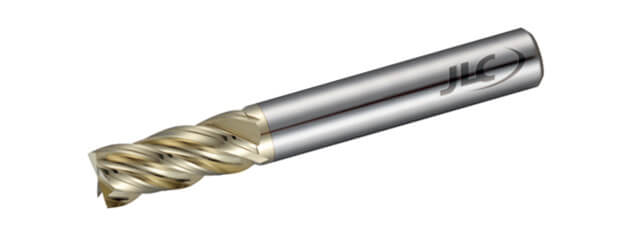

AP4-End Mill For Nickel Alloy 718-4 Flutes

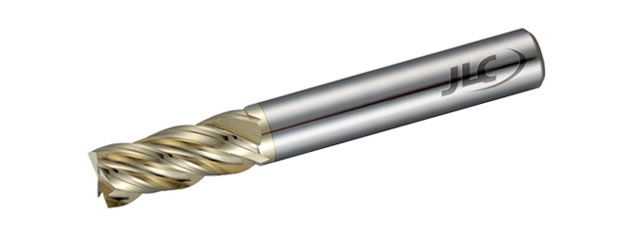

AP4-Corner Radius End Mill For Nickel Alloy 718 - 4 Flutes

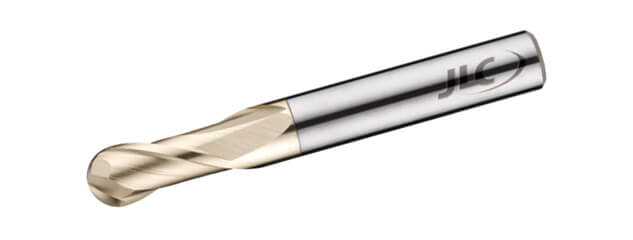

APB-Bullet-Shaped Design - Ball End Mill - 2 Flutes

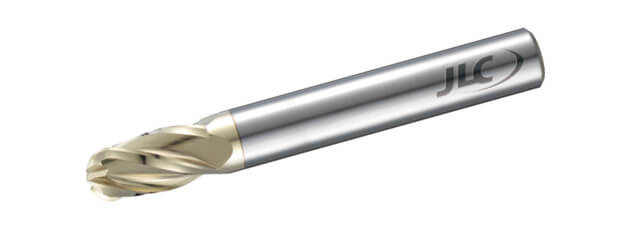

APN-Bullet-Shaped Design - Ball End Mill - 4 Flutes
AP Series: The Foundation of Advanced Aerospace Machining #
The AP Series is built on three pillars:
- Bullet Fluid Dynamics Design: Inspired by the streamlined efficiency of a bullet, this design minimizes resistance during cutting, reducing forces and enhancing chip evacuation. The result is more stable, powerful, and versatile machining, especially for ramping, slotting, and complex 3D contours.
- Premium European Carbide Rods: Only top-tier European tungsten carbide is used, ensuring exceptional purity, consistent grain structure, and superior hardness. This foundation delivers high batch-to-batch consistency, extended tool life, and unmatched reliability.
- Advanced Composite and Diamond-Like Coatings: Moving beyond standard TiSiN, JLC applies proprietary coatings tailored for specific materials. These coatings provide thermal protection, anti-adhesion, and improved chip evacuation, crucial for high-speed machining of aerospace alloys.
Bullet Fluid Dynamics: A New Standard in Tool Geometry #
The bullet-shaped geometry of the AP Series is engineered to:
- Reduce Cutting Forces: The streamlined profile allows for smoother engagement with the material, lowering stress on both the tool and the machine.
- Enhance Cutting Power: More machine power is converted into effective cutting, increasing material removal rates without compromising tool life or finish.
- Improve Chip Evacuation: Clean, manageable chips are rapidly removed, preventing tool failure and workpiece damage, especially in aluminum and titanium machining.
- Enable Application Versatility: Ideal for ramping, plunging, and drill-milling, the design supports smooth entry and exit in complex contours.
Material Excellence and Surface Finish #
- European Tungsten Carbide: Sourced exclusively from leading European suppliers, the carbide ensures strength and durability under extreme conditions.
- Mirror Finish Technology: Proprietary surface finishing achieves ultra-smooth cutting surfaces, reducing friction and material adhesion. This doubles tool life and enhances the final component’s surface quality.
Advanced Coating Solutions #
- Composite Coating for Nickel Alloys: Multi-layered, high-hardness coatings withstand temperatures above 1200°C, protect against heat, and prevent built-up edge during Inconel 718 machining.
- Diamond-Like Carbon (DLC) for Aluminum: The APAL end mill features a DLC coating, eliminating aluminum chip welding and ensuring a flawless finish.
Application-Specific Engineering #
- APET & APAL: Embody the bullet fluid dynamics concept for steel and aluminum, respectively. The APAL, with German carbide and DLC coating, is optimized for high-performance aluminum machining.
- AP5 & AP4: Designed for nickel-based superalloys like Inconel 718. The AP5 (5-flute) excels in side milling and finishing, increasing feed rates by over 20%. The AP4 (4-flute) features a variable-pitch design for stability, suppressing chatter and doubling tool life.
- APB & APN: Bullet-shaped ball nose end mills for complex profiling, grooving, and 3D surfacing. Their innovative design and exclusive coatings extend tool life and maintain accuracy in demanding applications.
JLC’s Core Strengths #
| Core Feature / Aspect | JLC’s Advantage & Commitment | Benefits for Partners |
|---|---|---|
| Customization Service | Customization is standard; bespoke tools for specialized needs. | Perfect-fit tools, optimized performance, shorter lead times. |
| Quality Assurance | Strict QC from raw material to shipment; full geometric inspection and advanced coatings. | Consistent precision and reliability, upholding your brand’s reputation. |
| Expert Technical Support | Experienced engineers provide comprehensive support from development to inspection. | Direct access to expertise for complex applications and problem-solving. |
| Manufacturing Process | All tools CNC ground in Taiwan with high-precision methods. | Cutting-edge technology and craftsmanship ensure reliability and performance. |
| Customer-First Service | Prompt, professional service; every order double-checked before dispatch. | Reliable supply chain, accuracy, and efficiency from order to delivery. |
| Talent Management | Continuous investment in team expertise and innovation. | Long-term stability and a deep knowledge base for evolving needs. |
Frequently Asked Questions (FAQ) #
1. What are the advantages of the AP Series’ bullet-shaped design in aerospace machining?
- The bullet-shaped design reduces cutting forces, enhances stability, and improves chip evacuation, especially for titanium and nickel alloys. This leads to longer tool life and superior surface finishes.
2. How does JLC ensure quality and consistency?
- By sourcing certified European carbide, manufacturing in Taiwan with high-precision CNC grinders, and applying advanced coatings, every tool meets strict tolerance standards and delivers reliable performance.
3. Can JLC provide technical support for specific applications?
- Yes. JLC’s technical experts offer recommendations on tool selection, cutting parameters, and machining strategies tailored to your needs.
4. What is the difference between AP4 and AP5 end mills for nickel-based alloys?
- AP5 (5-flute) is for high-efficiency side milling and finishing, enabling higher feed rates. AP4 (4-flute) offers maximum stability and longevity, especially in deep or long-reach applications.
5. Are custom options available for AP Series tools?
- Customization is standard at JLC. Variations in diameter, length, corner radius, and specialized features are available upon request.
6. Why is the coating on APB/APN ball nose end mills significant?
- The exclusive high-toughness coating protects the center point of the ball nose, where wear is most likely, significantly extending tool life and maintaining accuracy in 3D surfacing.
Discover the AP Series Advantage #
The AP Series represents a leap forward in aerospace cutting tool technology. By integrating innovative design, premium materials, and advanced coatings, JLC delivers tools that meet the highest standards of efficiency, longevity, and precision. For over 25 years, JLC has partnered with clients worldwide to solve the toughest machining challenges. Explore how the AP Series can elevate your aerospace manufacturing operations.
